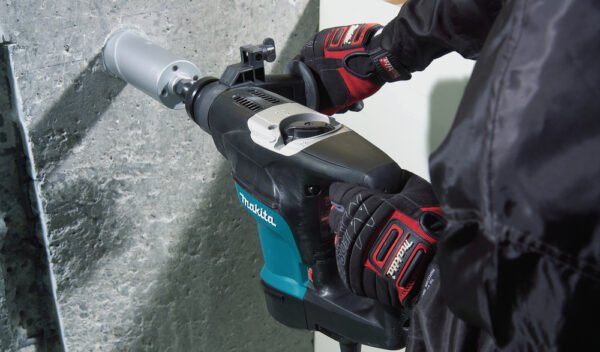

ROTARY HAMMERHR4003C

TECHNICAL SPECIFICATIONS

• • Maximum Output Power
    1100 W

• • No load speed
    250 – 500 min⁻¹

• • Impact
    1450 – 2900 min⁻¹

• • Max. Drilling Diameter in Concrete
    40 mm

• • Optimum Drilling Diameter Range in Concrete
    16 – 30 mm

• • Impact Energy
    8,3 J

• • Drilling diameter with TCT core bit
    105 mm

• • Power Supply Cord
    5,0 m

• • Plastic Carrying Case

• • Side Grip

• • Depth Gauge (2)

• • Sound Power Level (L_WA)
    103 dB(A)

• • Sound Pressure Level (L_pA)
    92 dB(A)

• • Noise Uncertainty (K Factor)
    3 dB(A)

• • Vibration Level (3 axes), Impact Drilling
    10,0 m/s²

• • Vibration: Chiselling
    9,0 m/s²

• • Vibration Level (3 axes), Chiselling with D-type Side Handle
    9,0 m/s²

• • Vibration Uncertainty (K Factor)
    1,5 m/s²

• • Weight Without Cable (EPTA-Procedure 01/2003)
    6,2 – 6,4 kg

• Product Dimensions (L x W x H):
  479 x 106 x 263 mm
